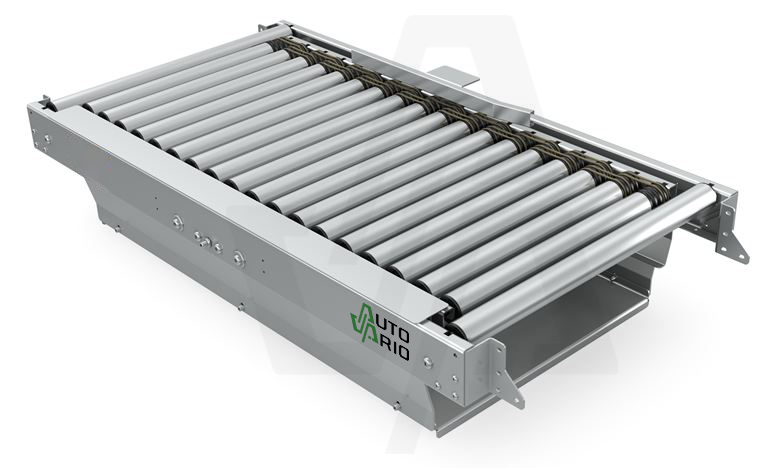

Check-weigh unit with driven roller conveyor and pusher
Item No. CO-007-03
Used in automatic systems, this unit facilitates precise weighing and weight control processes.
The case is directed to the weighing position, where it is automatically stopped, weighed, and then guided forward.
The system includes a pusher for automatic sorting onto a conveyor positioned at a right angle to the check-weigh unit after weighing.
Specifications and Requirements:
Control System is required
Power Supply: 1 x 230 V, 50/60 Hz
Drive System: Powered by 2 power rollers with a speed of 27 m/min
Pusher: Equipped with a double cylinder
Compressed Air Connection: Minimum 6 bar air, 10 mm hose
Weight Indication: Intervals of 20 g
Maximum Weight Capacity: 50 kg
Capacity:
For length L=750 mm, up to 10 items per minute
For length L=1230 mm, up to 8 items per minute
Higher capacity achievable with dynamic weighing
